Step by step Android app development on Jdeveloper

Mobile Application Framework enables you to create an application that can house different types of content that runs on mobile devices powered by Apple iOS platforms or Android devices. This section of the tutorial walks you through configuring your environment so that you can develop and test MAF applications using JDeveloper and an Android environment. In this section you configure, build, and test a small application using the Android environment and emulator. Although we are configuring the environment to use an emulator, you can also deploy to an actual Android device.

This tutorial is written for those who want to work with Android on a PC environment. You may also work with Android emulators in a Apple environment and these instructions are basically the same with some minor variations. The images below show you what your simulator will look like when you successfully complete the tutorial.

hello world app in simulatorhello world app in simulator


Step 1: Download and Install the Required Components
  1. Download and install the Android Stand-alone SDK Tools from http://developer.android.com/sdk/installing/index.html.
    You will need to accept the terms and conditions before you download the SDK.

    check for updates
  2. Run the installer_r24.0.2-windows.exe to install the Android Stand-alone SDK Tools. In the process of installing you can select where the files for the SDK should be placed. Below is what was used for this tutorial.
    (At the time of writing this tutorial, this was the name of the file. It may differ at later dates.)

    check for updates
  3. If you did not select the option to start SDK Manager at the end of the installation, find and double-click the SDK Manager.exe application. The Android SDK Manager is invoked. The Manager is what is used to install all the packages and emulators you use.

    check for updates
  4. By default, the Android SDK Tools are installed. Select and install the Android SDK Platform-tools and the Android SDK Build-tools. You will need to accept the software terms to install the packages.

    check for updates
  5. Select and install the Android 5.0.1 (API 21) components.

    check for updates
  6. You also need to download and install some extra packages. Scroll toward the bottom of the SDK Manager, and expand the Extras node.

    Select and install the Android Support Repository and Android Support Library packages.

    Select and install the Google Cloud Messaging for Android Library package. To see this option you must first select the Obsolete check box at the bottom of the window.

    Select and install the Google Repository and Google USB Driver packages.

    Select and install the Intel x86 Emulator Accelerator (HAXM) Installer package for the emulator (unless it is already installed).

    When you are done, the following packages should be installed:

    check for updates
  7. To use the Intel x86 Emulator Accelerator, once downloaded, you then must then install the drivers.
    To install the Intel HAXM executable, search your hard drive for IntelHaxm.exe.

    Navigate to Windows Explorer and locate the <android_home>\android-sdk\extras\intel\Hardware_Accelerated_Execution_Manager\intelhaxm-android.exe file. Double click it and you can use the defaults while it installs.

    check for updates
  8. You will need to have installed JDeveloper Studio Edition (version 12.1.3). You can download JDeveloper from the Oracle JDeveloper 12c home page. Once there, click the Downloads tab to see the JDeveloper download.
  9. Install the MAF extension by using the JDeveloper Update Center. Start JDeveloper, and then select the menu item Help - Check for Updates.

    check for updates
  10. Click Next at the Welcome dialog.
  11. Ensure the Search Update Center radio button is selected and click Next.
  12. step 1 in check for updates
  13. In the Available Updates select the check box for the Mobile Application Framework extension.

    Then click Next.

    step 2 in check for updates
  14. Accept the licensing agreements by clicking I Agree.

    Then, click Next and the download will start. Once the completes, click Next.

    step 2 in check for updates
  15. The download of the extension starts. When it finishes, click Finish.
    JDeveloper needs to restart. Click Yes to shut down and restart JDeveloper.
    Might take a minute or two, be patient..

    restart jdevloper message
  16. When JDeveloper is restarted, select Studio Developer (All Features) to be able to use the MAF extension.
    When prompted, do not import any preferences from previous versions of JDeveloper.
  17. Next, set the JAVA JDK that MAF will use. You are prompted to specify the location of your installed JAVA 8.
    preferences menu
  18. Then, you must set the SDK that MAF will use. Select the menu item Tools > Preferences.
    preferences menu
  19. On the left side of the Preferences screen, expand the Mobile Application Framework node.

    mobile preferences
  20. Then select Android Platform.

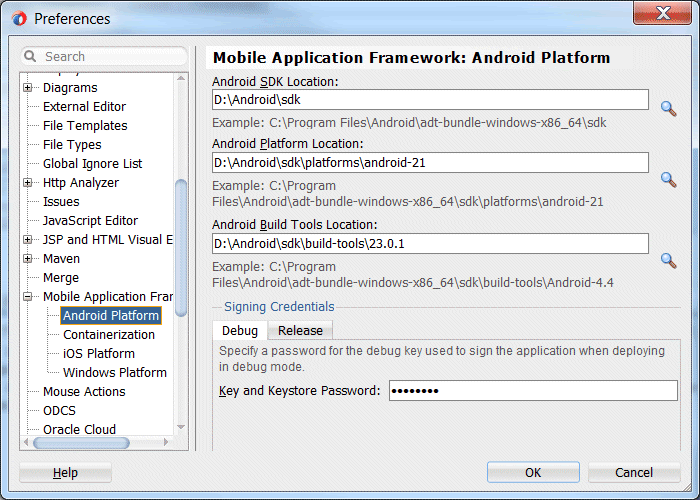

  21. Update all entries with the correct directory locations. If you have installed the SDK to its default location, then you can click on the magnifying glass next to the input list, and navigate to the Android SDK Directory as recommended in the image or your installation location. Do the same for the Android Platform Location and Android Build Tools Location which should point to the directory containing the aapt.exe file.

    There is a default password for the debug Key and Keystore. You can ignore those values for now.
    platform sdk location
  22. Click OK to dismiss the Preferences pane.
  23. Reopen the Android SDK Manager and create and start an Android emulator to use for your mobile deployment.

    check for updates
  24. In the Android SDK Manager menu bar, select Tools - Manage AVDs...

    The Android Virtual Device Manager dialog is displayed.

    check for updates
  25. Click the Create button and specify the following values to the properties.

    You may have another emulator already created in the list. Do not use this one, make sure to create a new one according to the specifications below.

    check for updates

    AVD Name = MAF
    Device = Nexus 7
    Target = Android 5.0.1 - API Level 21
    CPU/ABI = Intel Atom (x86_64)
    Internal Storage = 200 MiB
    Skin = No Skin
    Front Camera = Emulated
    Back Camera = None
    Memory Options Ram = 1024
    SD Card = 640 MiB
    Use Host GPU = Selected

    For the remainder, keep the defaults and click the OK button.

    You may choose another device type, keeping in mind that newer devices have greater resource demands and you may run into RAM issues on your own machine

    check for updates
  26. Select the new AVD and click the Start button.

    check for updates
  27. Accept the default values in the Launch Options pane, and click Launch.
  28. check for updates
  29. It may take a few minutes for the emulator to be invoked and start running. Once it's running, you may continue and test your mobile deployment.

    check for updates
Step 2: Create a MAF Application
    In this part of the tutorial, you create and deploy a “Hello World” MAF application to the Android emulator. Preparing MAF applications for deployment is primarily comprised of creating platform-specific deployment profiles.
    A deployment profile defines how an application is packaged into the archive that will be deployed to either an iOS or Android platform.
    The deployment profile:
    - Specifies the format and contents of the archive.
    - Lists the source files, deployment descriptors, and other auxiliary files that will be packaged into the archive file.
    - Describes the type and name of the archive file to be created.
    - Highlights dependency information, platform-specific instructions, and other information.
  1. In the Application Navigator click New Application to start the New Gallery dialog box.
    New Application
  2. In the New Gallery expand the General - Applications nodes and select Mobile Application Framework Application and click OK.

    new gallery mobile application item

  3. In the Name your application page, enter MyMobileApp in the Application Name field, and click Next.

    name mobile application
  4. Examine the Project Features for your first project, the ApplicationController.
    features of application controller  project
  5. Click Next twice and in the Name your project page, leave the default project name for the second project ViewController. Examine the Project Features for the ViewController project. Notice that the project uses Mobile Application Framework, HTML and CSS, Java, and JavaScript project features.

    project features in view controller project
  6. Click Next and Finish. In the Application Navigator, all the files associated with a new MAF application are viewable.
    application navigator files after mobile app creation After you complete a MAF Framework application, JDeveloper adds both project and application level artifacts. Among these artifacts is a MAF framework model project and the view-controller project (with the default name, ViewController) that has the MAF framework feature application resources. These resources include the configuration file for applications features, maf-feature.xml. The configuration file is a stub XML descriptor file that enables you to define feature applications that will be seen when the application runs. The maf-feature.xml defines details of each feature - for example, its icon, content type, starting point, etc.

    The maf-application.xml file defines the details of the application itself, including reference to features. These feature applications, when packaged into a JAR file known as a Feature Archive file (FAR), provide the reusable content that can be consumed by other MAF applications. One reason for this distinction is to allow developers to create feature archives (which may contain one or more features referenced in the maf-feature.xml), and then create applications by simply pulling in feature archives.  Of course each app would only have one maf-application.xml.

    A FAR is essentially a self-contained collection of everything that a feature requires, such as icon images, resource bundles, HTML, JavaScript, or other implementation-specific files. The FAR includes a single maf-feature.xml file, which identifies each of the packaged feature applications by a unique ID. You can edit this file to update feature properties. For example, you can specify the content implementation (local or remote HTML files, AMX pages, or a native application written in platform-specific language). You can also control the display of content based on such factors as user roles and privileges, or device properties. A mobile application can reference one FAR, several of them, or none at all.
  7. Right-click on the ViewController project and select New > From Gallery.
    In the New Gallery, select Web Tier - HTML and then the HTML Page item. Click OK.
    application navigator files after mobile app creation
  8. Accept the default File Name and Directory, then click OK.

    application navigator files after mobile app creation
  9. In the Editor, type the following text "Deployment Successful".
    Then in the Properties Window, expand the Style node and set the Font Size to xx-large.
    application navigator files after mobile app creation

    application navigator files after mobile app creation

    application navigator files after mobile app creation
  10. Save your work.


Step 3: Add UI Access to the Pages
    In this section, you configure a new feature so the user can access the newly defined local HTML page from the native application container. You will need to perform this task whenever you add pages or task flows to your application.
  1. In the Application Navigator, expand the ViewController project. Locate and expand the Application Sources folder. Then expand the META-INF folder. You will see the maf-feature.xml file as shown.

    adfmf-feature,xml selected in the applications navigator
  2. Double click on the maf-feature.xml file to open the Feature editor.
    adfmf-feature.xml in editor
  3. Add a new feature by clicking the green plus sign on the Features table near top of the editor. If you cannot see the plus sign, scroll the Feature editor to the right (the plus sign is on the far right side of the Feature editor).

    adfmf-feature.xml with create adf mobile feature pane displayed with default values
  4. In the Create MAF Feature dialog, modify the following values:

    - Feature Name: Success
    - Feature ID: oracle.success

    Accept the default directory value, and confirm the Add a corresponding feature reference to maf-application.xml check box is selected, and then click OK.

    adfmf-feature.xml with create adf mobile feature pane displayed with correct values
  5. In the Features table, select the newly created feature oracle.success. Under the Features table, click the Content tab, and locate the Content table. Notice that the content item oracle.Success.1 is created by default.
  6. Save your work.
  7. In the Content area, set the Type property is set to Local HTML.

    content tab with correct type displayed
  8. In the Content section, find the URL text box.

    On the right side of the URL text box, click the magnifying glass icon.

    task flow selected when green plus sign is clicked
  9. In the Open window, select the html page you created earlier. In this case, untitled1.html. Then click Open.

    view controller rask flow option selected in content tab
  10. The resulting definition should look like the image below.
    completed feature displayed in the editor
  11. Save all your work.
Step 4: Deploy and Test the Page in an Android Emulator
    Now that you have an environment installed and have created an application, you're ready to deploy the application to the emulator.
  1. Confirm your emulator is still running. At the bottom of the emulator, click the Applications icon and all the installed applications will be visible.
  2. Keep the emulator open and return to JDeveloper and the MyMobileApp application.

    check for updates

  3. In the Application menu, select Deploy - New Deployment Profile to start the Create Deployment Profile dialog box.
    deploy - new deployment profile menu option
  4. In the Profile Type drop-down list, ensure MAF for Android is selected. Enter Android2 as the Deployment Profile Name and click OK.
    name of deployment profile
  5. Select the Android Options node and confirm your values look like the ones below.

    setting simulator target version to 5.0
  6. Click OK, and then save all your work.
  7. In the Application menu, select Deploy > Android2...

    deploy menu option
  8. In the subsequent dialog box, select Deploy application to emulator, and click Finish.
  9. deploy profile to simulator window


  10. Watch the Deployment Log window for any errors. If the compilation and deployment process completes as expected, you should see the Deployment Log window as shown below.

    deployment log window - deployment finished
  11. Navigate back to the emulator.

    You should see the MyMobileApp application you have just created and deployed.
  12. Click the MyMobileApp icon to start the application.
  13. application in iOS simulator

    The MyMobileApp application currently contains your HTML page running inside the MAF application.

    hello world application in simulator
  14. If you are finished, then close the emulator, but remember to restart it before you want to deploy to it again.
